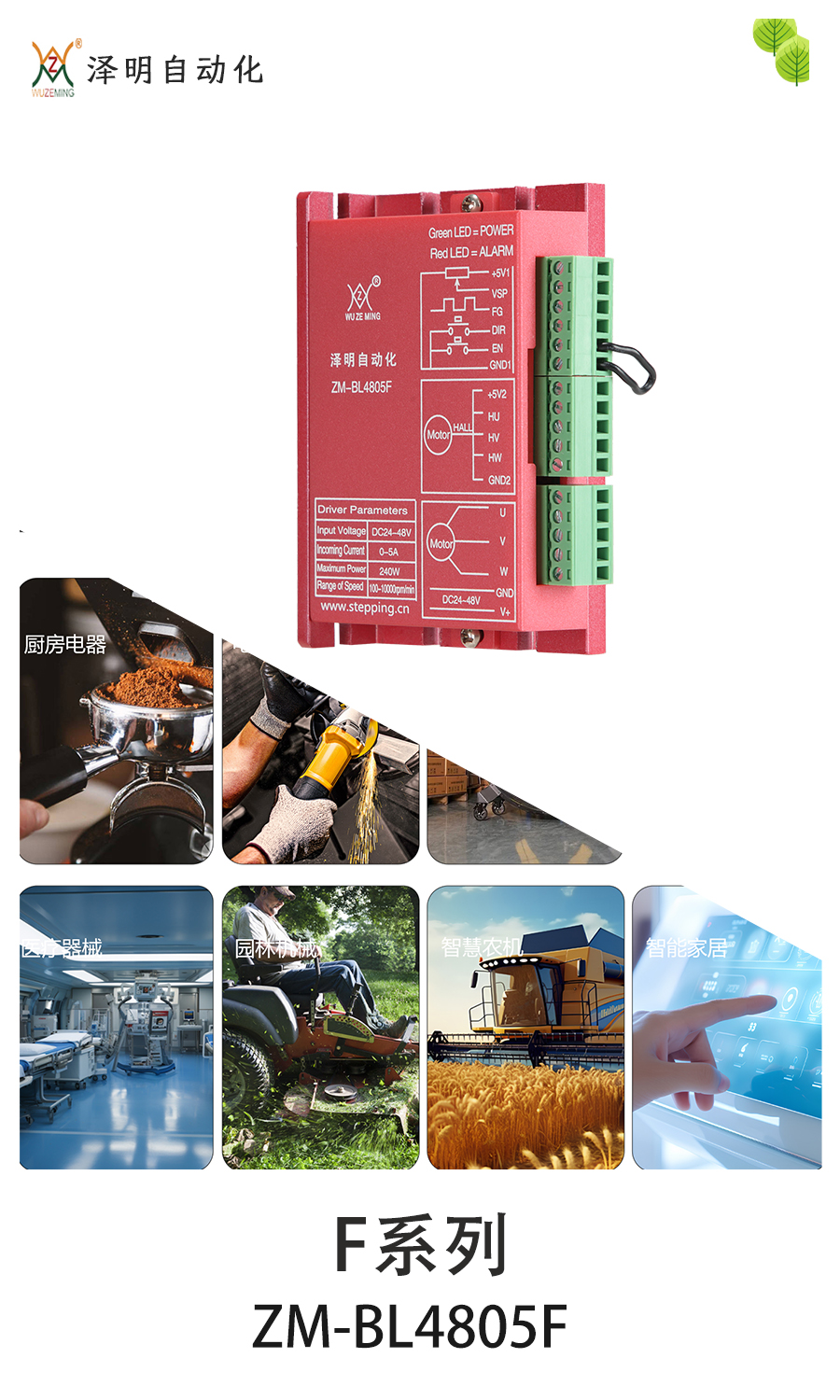

ZM-BL4805F
Price Negotiable!
◆Power supply: DC18V~50V DC power supply, capacity according to motor power;
◆Input maximum current: peak 5.0A;
◆Input maximum power: 240W max;
◆ There is Hall, but there is no Hall universal
◆Adaptation motor: Adaptable motor with output power ≤ 180W;
◆High torque and high speed output, with a maximum speed of 10000rpm/min (depending on the motor speed);
◆ With pulse speed output, the motor speed can be observed at any time;
◆Speed regulation mode: 0-5V analog and 10 Hz -300Hz PWM speed regulation, convenient for users to use;
◆ Start-stop enable control signal and direction signal input;
◆Over-current, over-voltage, under-voltage, blocking protection and other functions.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Electrical performance (at ambient temperature Tj=25°C)
| Power supply | DC18V~50VDC power supply, capacity according to motor power |
| Output current | Peak5.0A |
| Power rating | 240W max |
| Adapted to the motor | Compatible withmotors withan output power ≤ 180W |
| Insulation resistance |
At room temperature>500MΩ |
| Insulation strength |
0.5KV at room temperature and pressure for 1 minute |
Use the environment parameters:
| Cool down the square | Natural air cooling (forced air cooling recommended) | |
| Usage environment | occasion | Try to avoid dust, oil mist and corrosive gases |
| Temperature |
0°C~+50°C |
|
| Humidity | <80% RH,no condensation, no frosting | |
| Shock |
5.9m/s2 Max |
|
| Maintain temperature |
-20°C~+65°C |
|
| Shape and size |
96×61.5×27.5mm |
|
| weight | About0.15Kg | |
【Note】Due to the drastic change in the temperature of the storage and transportation environment, it is easy to produce condensation or frost, at this time, the drive should be left for more than 12hours, and the drive temperature is consistent with the ambient temperature before it can be powered on

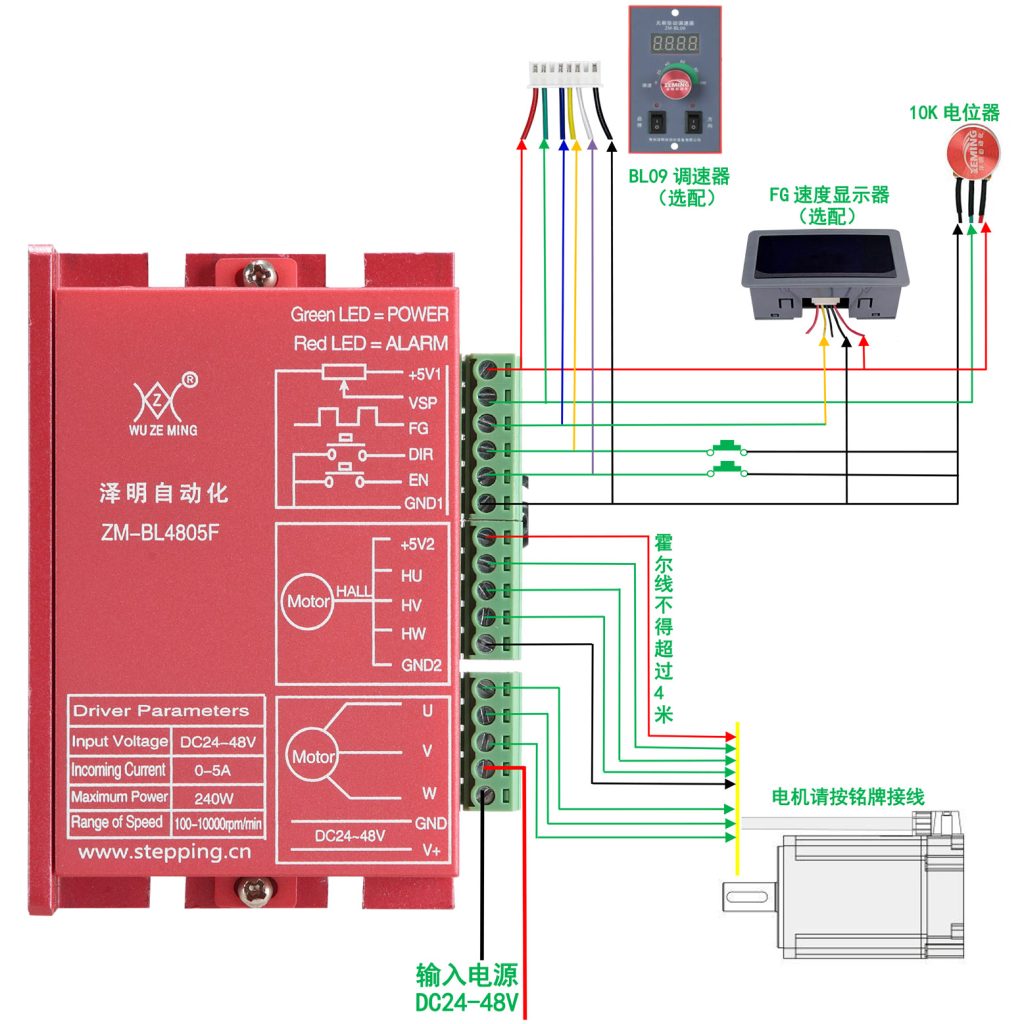

Drive wiring diagram:
