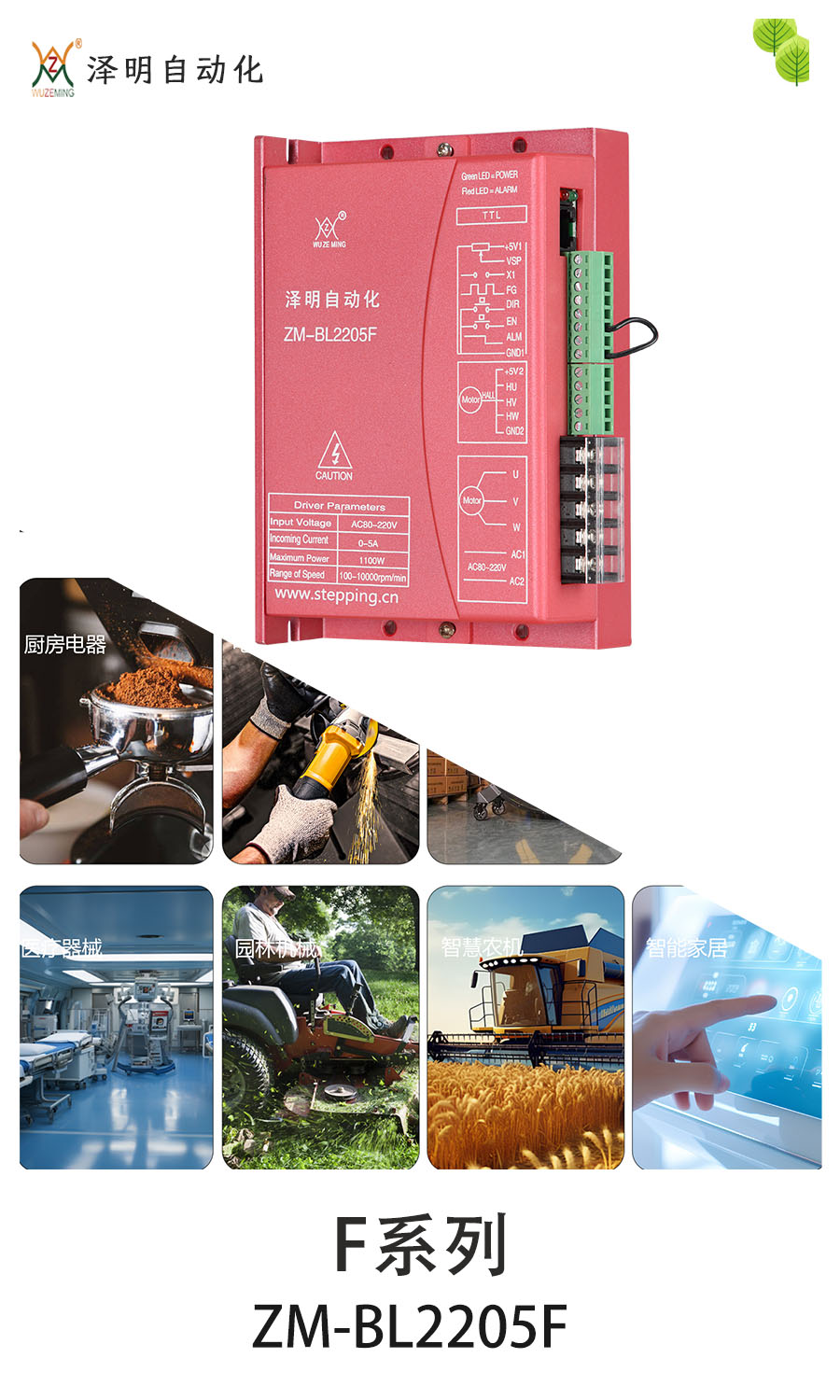

ZM-BL2205F
Price Negotiable!
◆Power supply: AC80V~220V AC power supply, the capacity is selected according to the motor power
◆Input maximum current: not more than 5A
◆Input maximum power: 1100W max
◆Adaptation motor: Adaptable to motors with an output power ≤ 750W
◆ With or without Hall universal
◆ External speed display board can be connected to display the speed; It can also be connected to a computer to set the driver parameters;
◆ Current and speed double closed-loop design, large low-speed torque, stable operation;
◆High torque and high speed output, with a maximum speed of 10000rpm/min; (Depends on the user’s motor)
◆Speed regulation method: external PWM speed regulation or external potentiometer speed regulation;
◆ There are EN (enable), DIR (direction), X1 (brake) signal control terminals;
◆ Can output velocity pulse FG, (photoelectric isolation, gate output);
◆ Alarm signal ALM can be output for user detection (photoelectric isolation, gate output);
◆It has protection functions such as overcurrent, overvoltage, undervoltage, fan control, Hall sensor phase error, and motor blocking.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Electrical performance (at ambient temperature Tj=25°C)
| Power supply | AC80V~220VAC power supply (capacity is selected according to motor power). |
| Input maximum current | Not more than 5A(depending on the equipped motor and rated load). |
| Input maximum power | Up to1100W |
| Adapted to the motor | Suitable for motors with an output power ≤ 750W |
| Insulation resistance |
At room temperature>500MΩ |
| Insulation strength |
0.5KV at room temperature and pressure for 1 minute |
Use the environment parameters:
| Cooling method | Natural air cooling&forced air cooling | |
| Usage environment | occasion | Try to avoid dust, oil mist and corrosive gases |
| temperature |
0°C~+50°C |
|
| Humidity |
<80% RH,no condensation, no frosting |
|
| Shock |
<0.5G(4.9m/s2) 10Hz-60Hz (non-continuous operation.) |
|
| Storage temperature |
-20°C~+65°C |
|
| Dimensions | 150mmX97.5mmX53mm | |
| weight | Approx.0.55Kg | |
【Note】Due to the drastic change in the temperature of the storage and transportation environment, it is easy to produce condensation or frost, at this time, the drive should be left for more than 12hours, and the drive temperature is consistent with the ambient temperature before it can be powered on

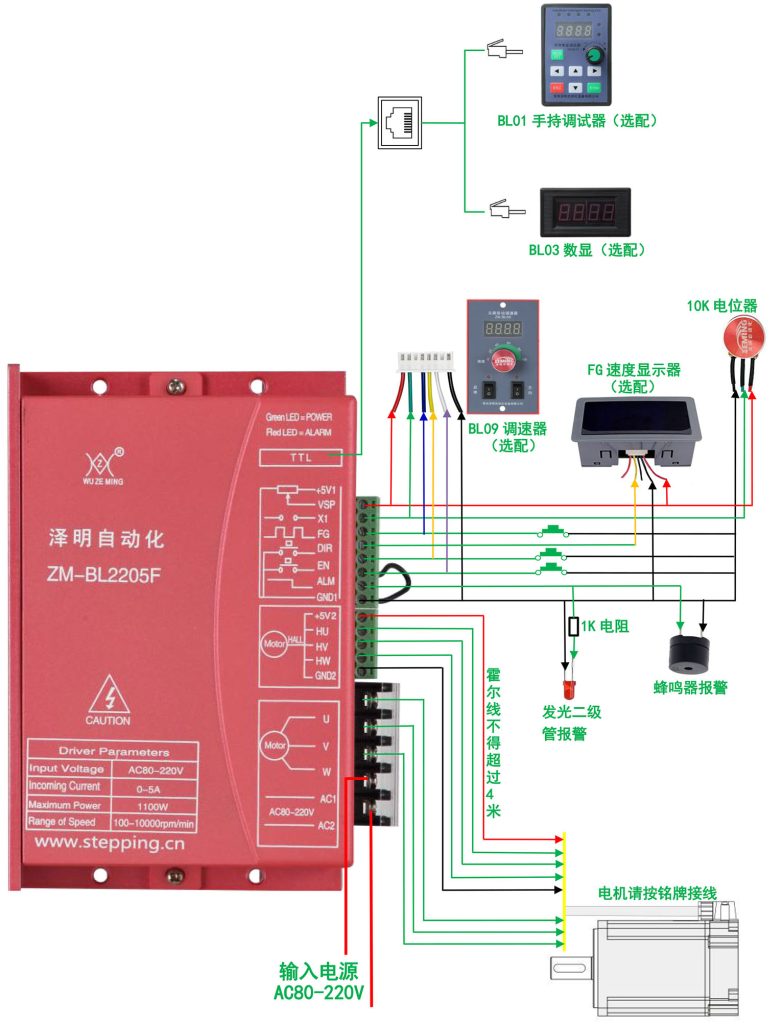

Driver wiring diagram:
