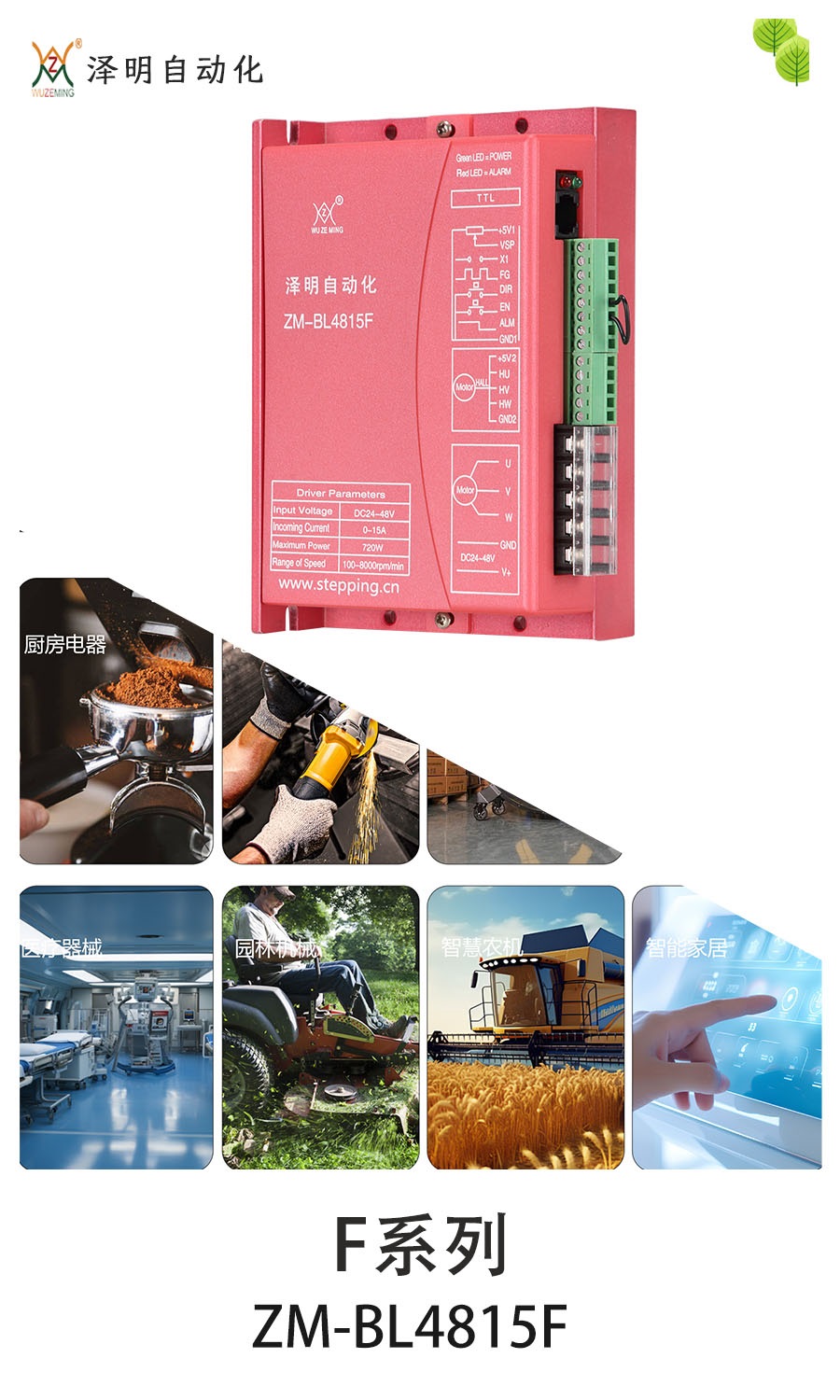

ZM-BL4815F
Price Negotiable!
◆Power supply: DC18V~50V DC power supply, capacity is selected according to the motor power;
◆Maximum input current: not more than 15A
◆Input maximum power: 720W max
◆Adaptable motor: Adapted to motors with an output power ≤ 500W
◆ With or without Hall universal
◆ External speed display board can be connected to display the speed; It can also be connected to a computer to set the driver parameters
◆ Current and speed double closed-loop design, large low-speed torque, stable operation;
◆ High torque and high speed output, with a maximum speed of 10000rpm/min;
◆ Speed regulation mode: external PWM speed regulation, external potentiometer speed regulation;
◆ There are EN (enable), DIR (direction), X1 (brake) signal control terminals;
◆ It can output velocity pulse FG, (gate output);
◆ Alarm signal can be output for user detection;
◆ It has protection functions such as over-current, over-voltage, under-voltage, Hall sensor phase error, and motor blocking.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Electrical performance (at ambient temperature Tj=25°C)
| Power supply |
DC18V~50VDC power supply (Capacity is selected according to motor power) |
| Input maximum current | No larger than15A
(Depends on the equipped motor and rated load) |
| Input maximum power | 720W max |
| Adapted to the motor | Compatiblewith motors withan output power ≤ 500W |
| Insulation resistance |
At room temperature>500MΩ |
| Insulation strength |
0.5KV at room temperature and pressure for 1 minute |
Use the environment parameters:
| Cooling method | Natural air cooling&forced air cooling | |
| Usage environment | occasion | Try to avoid dust, oil mist and corrosive gases |
| temperature |
0℃～+50℃ |
|
| Humidity |
<80% RH,no condensation, no frosting |
|
| Shock |
<0.5G(4.9m/s2) 10Hz-60Hz (non-continuous operation.) |
|
| Storage temperature |
-20℃～+65℃ |
|
| Dimensions | 150mmX97.5mmX53mm | |
| weight | Approx.0.55Kg | |
【Note】Due to the drastic change in the temperature of the storage and transportation environment, it is easy to produce condensation or frost, at this time, the drive should be left for more than 12hours, and the drive temperature is consistent with the ambient temperature before it can be powered on.

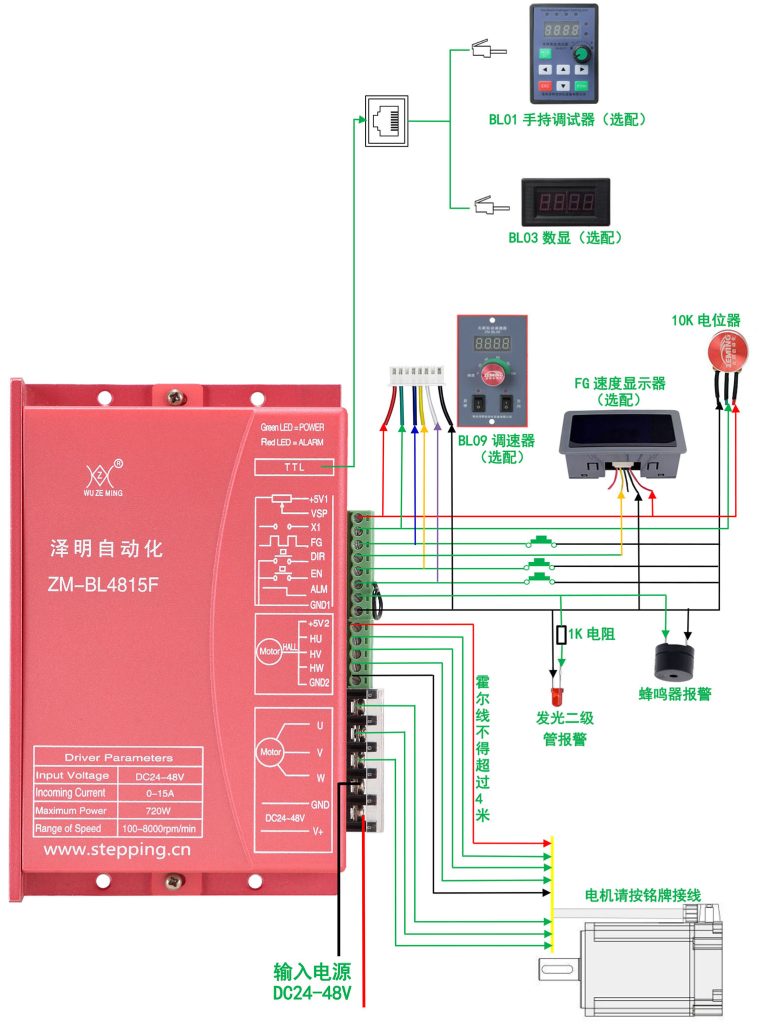

Driver wiring diagram:
