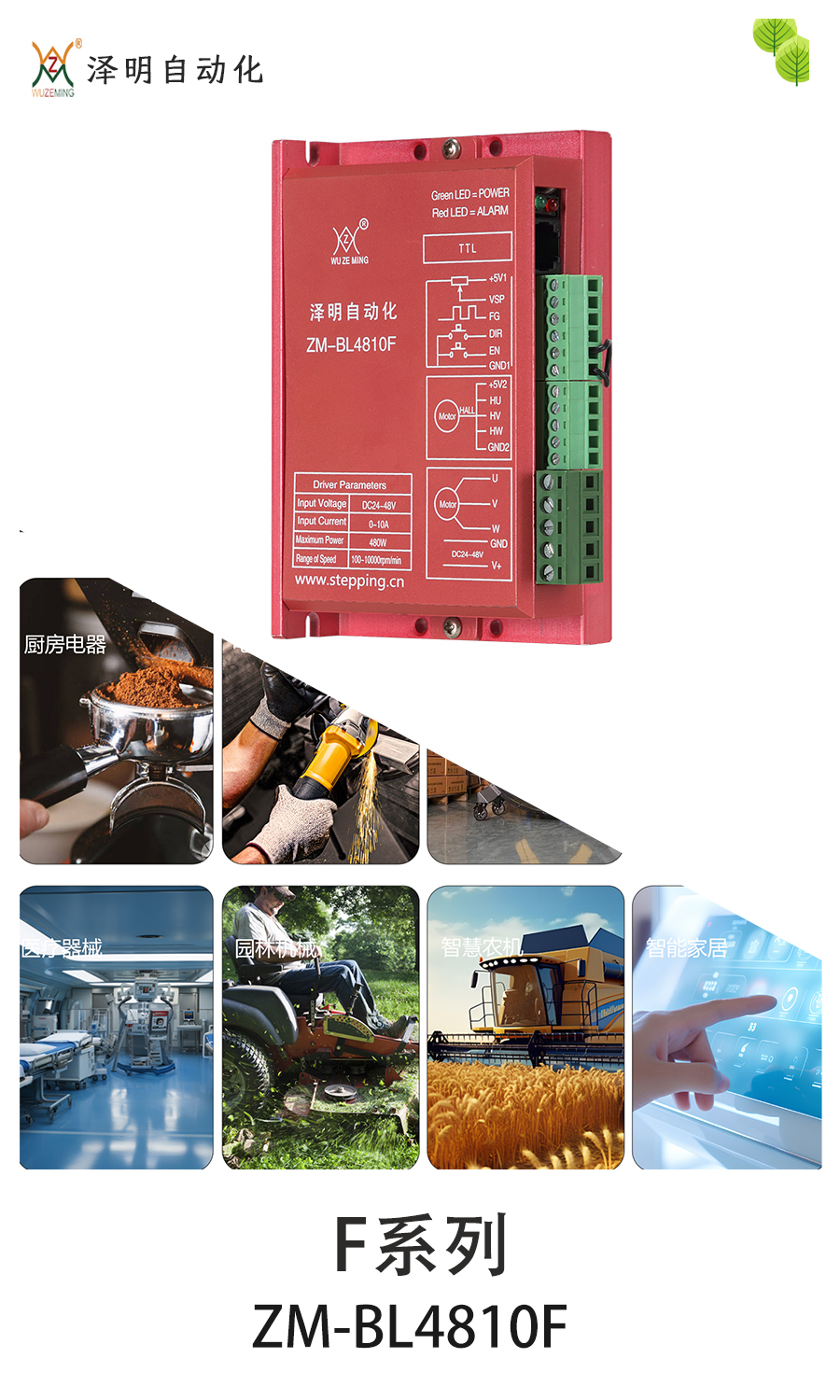

ZM-BL4810F
Price Negotiable!
◆ Power supply DC18V~50V DC power supply, capacity according to motor power;
◆ Maximum input current: not more than 10A
◆ Input maximum power: 480W max
◆ Adaptable motor: Adapt to motors with an output power ≤ 300W
◆ With or without Hall universal
◆ External speed display board can be connected to display the speed; It can also be connected to a computer to set the driver parameters
◆ Dual closed-loop design of current and speed, large torque at low speed, and stable operation;
◆ High torque and high speed output, the maximum speed can reach 10000rpm/min;
◆ Speed regulation mode: 0-5V analog (100 Hz -100KHz PWM speed can be set according to customer requirements);
◆ There are EN (enable), DIR (direction) and other signal inputs;
◆ It can output velocity pulses;
◆ It has protection functions such as over-current, over-voltage, under-voltage, and motor blocking.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Electrical performance (at ambient temperature Tj=25°C)
| Power supply |
DC18V~50VDC power supply (Capacity is selected according to motor power) |
| Rated current |
Not greater than10A (Depends on the equipped motor and rated load) |
| Power rating |
480W max |
| Adapted to the motor | Compatible with motors with an output power ≤ 300W |
| Insulation resistance |
At room temperature>500MΩ |
| Insulation strength |
0.5KV at room temperature and pressure for 1 minute |
Use the environment parameters
| Cooling method | Natural air cooling (forced air cooling recommended) | |
| Usage environment | occasion | Try to avoid dust, oil mist and corrosive gases |
| temperature |
0℃～+50℃ |
|
| Humidity |
<80% RH,no condensation, no frosting |
|
| Shock |
<0.5G(4.9m/s2) 10Hz-60Hz (non-continuous operation.) |
|
| Storage temperature |
-20℃～+65℃ |
|
| Dimensions | 118×75.5×34mm | |
| weight |
Approx.0.3kg |
|

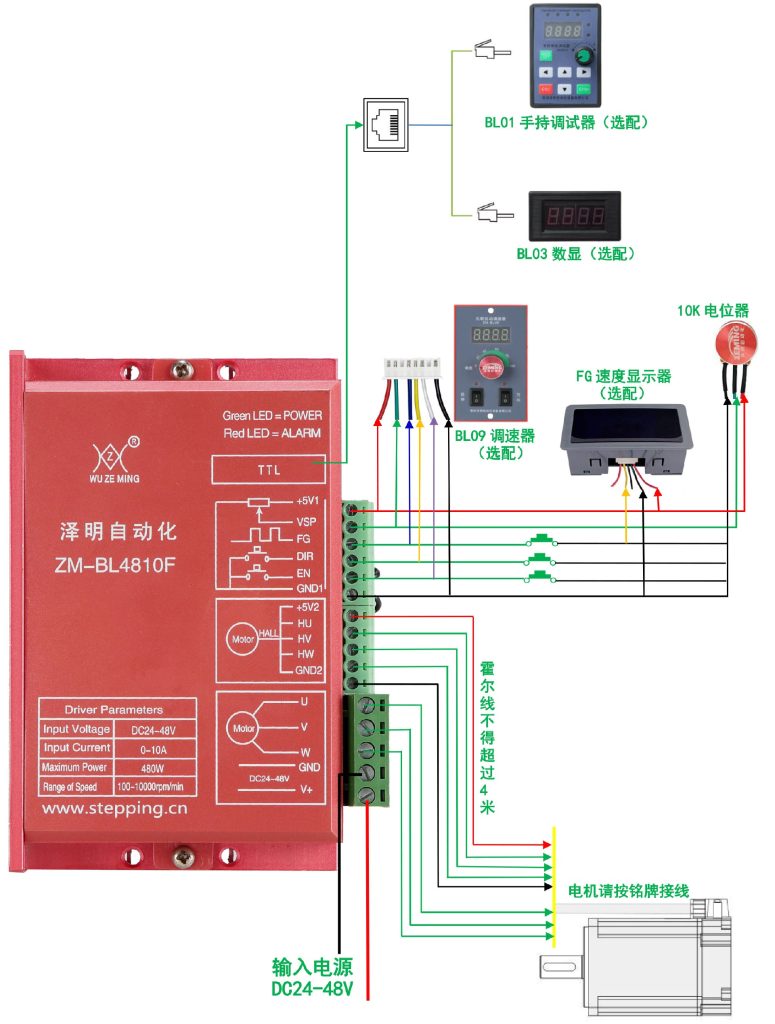

Driver wiring diagram:
