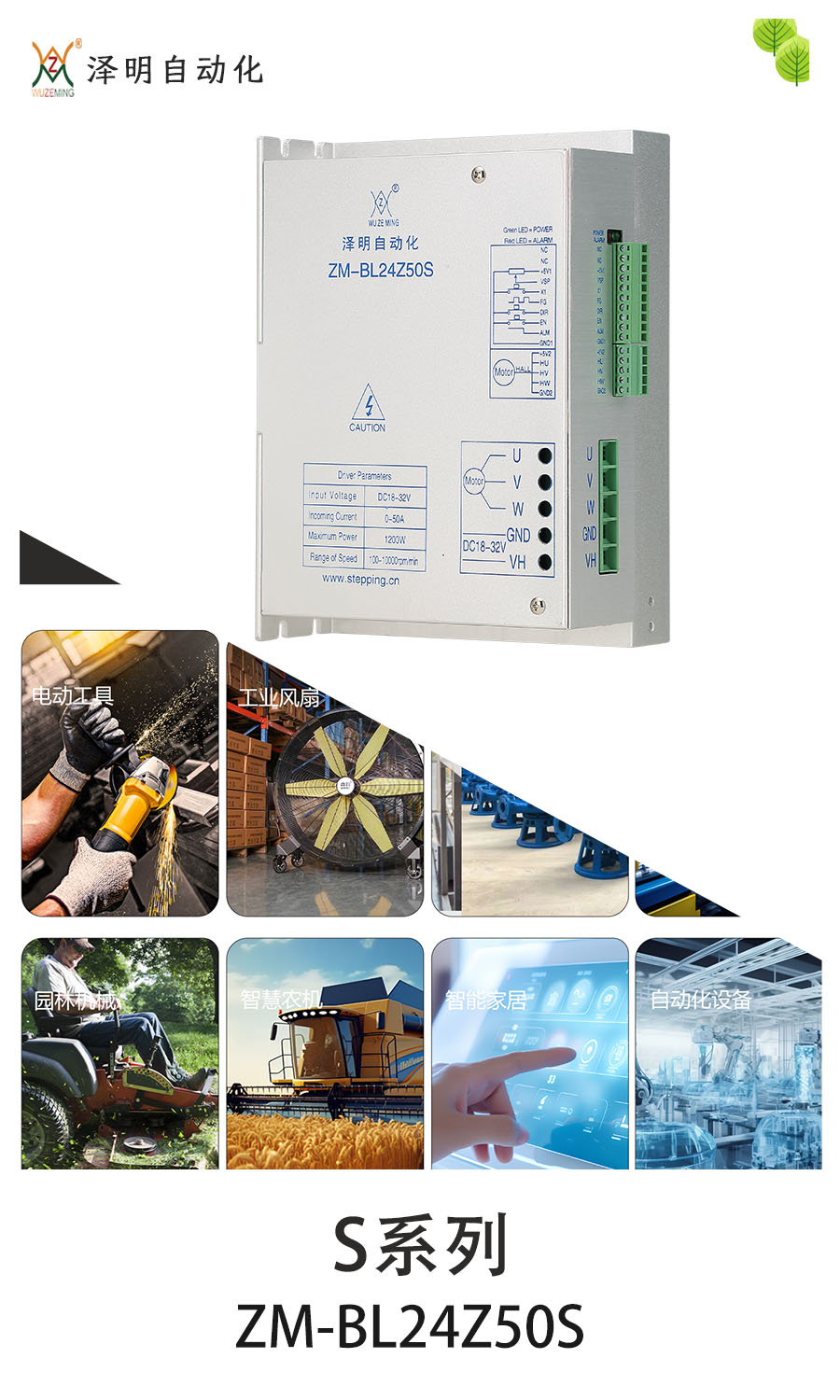

ZM-BL24Z50S
Price Negotiable!
◆Power supply 😀 C18V~32V DC power supply, the capacity is selected according to the motor power
◆ Maximum input current: not more than 50A
◆Input maximum power: 1200W max
◆Adaptable motor: Adaptable to motors with an output power ≤ 900W
◆ With or without Hall universal
◆ Sine wave control, constant current mode, stepless speed regulation;
◆ High torque and high speed output, the maximum speed can reach 10000rpm/min;
◆ There are EN (enable), DIR (direction), X1 (brake) signal control terminals;
◆ It can output velocity pulse FG (gate output);
◆ Alarm signal can be output for user detection;
◆ It has protection functions such as undervoltage and motor blocking;
◆ It has self-learning function, adapts to different parameters of motors, and the default rotation direction can be set
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Electrical performance (at ambient temperature Tj=25°C)
| Power supply |
DC18V~32VDC power supply (Capacity is selected according to motor power) |
| Rated current |
No greater than50A (Depends on the equipped motor and rated load) |
| Power rating |
Max. 1200W |
| Adapted to the motor |
Motors with an output power ≤ 900 W |
| Insulation resistance |
At room temperature>500MΩ |
| Insulation strength |
0.5KV at room temperature and pressure for 1 minute |
Use the environment parameters:
| Cooling method | Natural air cooling (forced air cooling recommended) | |
| Usage environment | occasion | Try to avoid dust, oil mist and corrosive gases |
| temperature |
0°C~+50°C |
|
| Humidity |
<80% RH,no condensation, no frosting |
|
| Shock |
<0.5G(4.9m/s2) 10Hz-60Hz (non-continuous operation.) |
|
| Storage temperature |
-20°C~+65°C |
|
| Dimensions | 205mmX165mmX78mm | |
| weight | Approx.1.65Kg | |
【Note】Due to the drastic change in the temperature of the storage and transportation environment, it is easy to produce condensation or frost, at this time, the drive should be left for more than 12hours, and the drive temperature is consistent with the ambient temperature before it can be powered on
