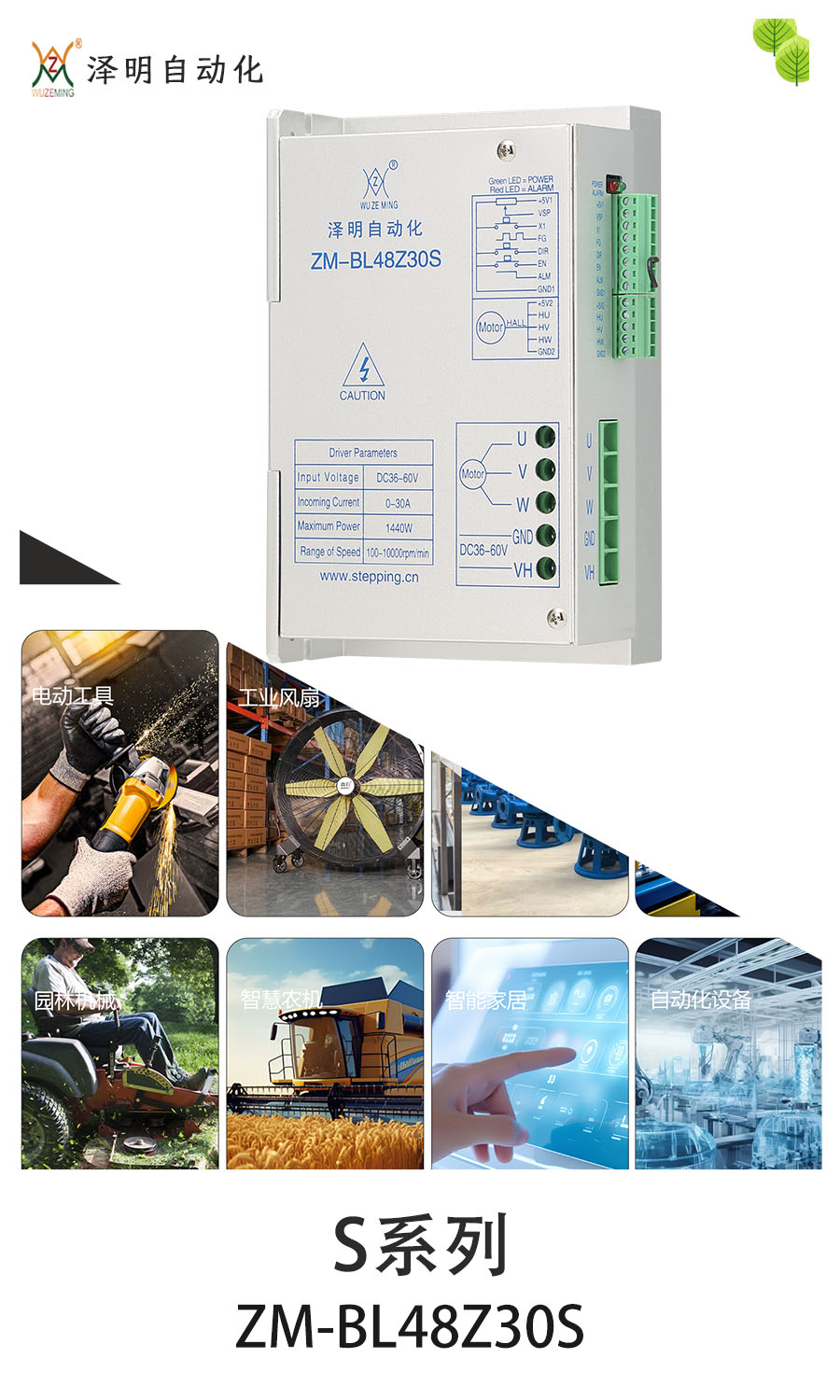

ZM-BL48Z30S
Price Negotiable!
◆ Power supply: DC36V~60V DC power supply, capacity according to motor power
◆Maximum input current: not more than 30A
◆ Input maximum power: 1440W max
◆ Adaptation motor: Adapt to a motor with an output power ≤ 1080W
◆ With or without Hall universal
◆ Square wave control, constant current mode, stepless speed regulation;
◆ High torque and high speed output, the maximum speed can reach 10000rpm/min;
◆ There are EN (enable), DIR (direction), X1 (brake) signal control terminals;
◆ It can output velocity pulse FG (gate output);
◆ Alarm signal can be output for user detection;
◆ It has protection functions such as over-undervoltage and motor blocking.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Electrical performance (at ambient temperature Tj=25°C)
| Power supply |
DC36V~60VDC power supply (Capacity is selected according to motor power) |
| Rated current |
No more than30A (Depends on the equipped motor and rated load) |
| Power rating |
1440W max |
| Adapted to the motor | Suitable formotors withan output power ≤ 1080W |
| Insulation resistance |
At room temperature>500MΩ |
| Insulation strength |
0.5KV at room temperature and pressure for 1 minute |
Use the environment parameters:
| Cooling method | Natural air cooling (forced air cooling recommended) | |
| Usage environment | occasion | Try to avoid dust, oil mist and corrosive gases |
| temperature |
0℃～+50℃ |
|
| Humidity |
<80% RH,no condensation, no frosting |
|
| Shock |
<0.5G(4.9m/s2) 10Hz-60Hz (non-continuous operation.) |
|
| Storage temperature |
-20℃～+65℃ |
|
| Dimensions | 180mmX110mmX70mm | |
| weight | About1Kg | |
【Note】Due to the drastic change in the temperature of the storage and transportation environment, it is easy to produce condensation or frost, at this time, the drive should be left for more than 12hours, and the drive temperature is consistent with the ambient temperature before it can be powered on

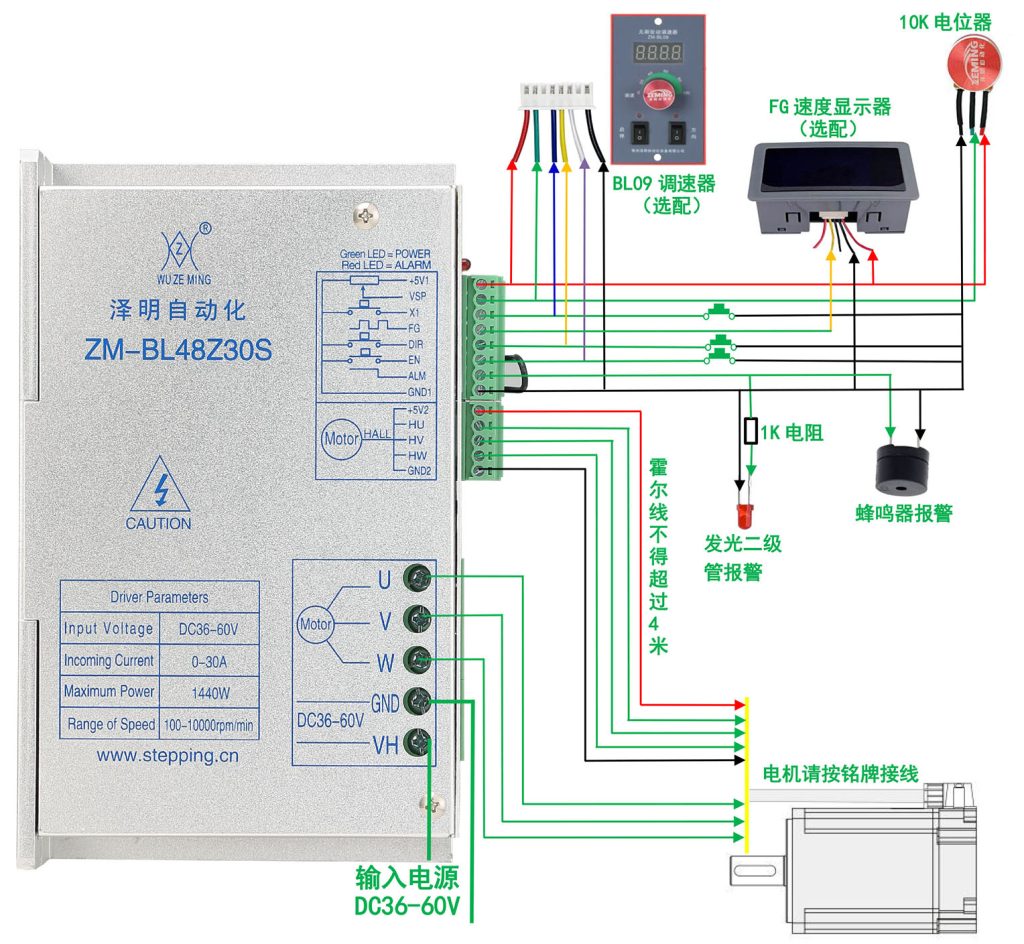

Driver wiring diagram:
